CITROËN C3 II
Below you will find interactive and original diagrams for CITROËN C3 II.
Total Fuses
44
Most Common
15A (10)
Important: Disclaimer
FuseLayouts.com is not responsible for any malfunctions, damages, repair costs, or any other losses resulting from the use of the information and diagrams provided. All repairs and modifications are performed at your own risk. We always recommend consulting with a qualified mechanic for more serious electrical issues.
Before using the diagram, make sure it matches your exact vehicle model and production year. Diagrams may vary depending on equipment version and year.
Select Fuse Box:
Interactive 3D Diagram
Selected Fuse
| No. | Amp | Circuit |
|---|---|---|
| F1 | 15A | Rear wiper |
| F2 | - | Not used |
| F3 | 5A | Airbags and pretensioners control unit |
| F4 | 10A | Air conditioning, clutch switch, electrochromatic mirror, particle fi lter pump (Diesel), diagnostic socket, airfl ow sensor (Diesel) |
| F5 | 30A | Electric windows panel, passenger's electric window control, front electric window motor |
| F6 | 30A | Rear electric windows motors and driver's electric window motor |
| F7 | 5A | Courtesy lamp, side reading lamps |
| F8 | 20A | Multifunction screen, audio system, navigation radio, instrument panel with clock, alarm control unit, alarm siren |
| F9 | 30A | Audio system (after-market), 12 V socket, portable navigation support supply |
| F10 | 15A | Steering wheel controls |
| F11 | 15A | Ignition, diagnostic socket, automatic gearbox control unit |
| F12 | 15A | Rain/brightness sensor, trailer relay unit, driving school module |
| F13 | 5A | Main stop switch, engine relay unit |
| F14 | 15A | Parking assistance control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifi er. |
| F15 | 30A | Parking assistance control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifi er. |
| F16 | - | Not used |
| F17 | 40A | Rear screen and exterior mirrors demisting/ defrosting |
| FH36 | 5A | Trailer relay unit |
| FH37 | - | Not used |
| FH38 | 20A | HiFi amplifi er |
| FH39 | - | Not used |
| FH40 | 30A | Trailer relay unit |
| SH | - | PARC shunt |
Selected Fuse
Original Documentation & Assignments
Dashboard Fusebox

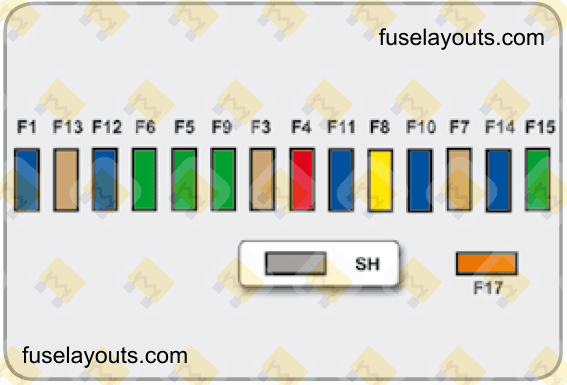

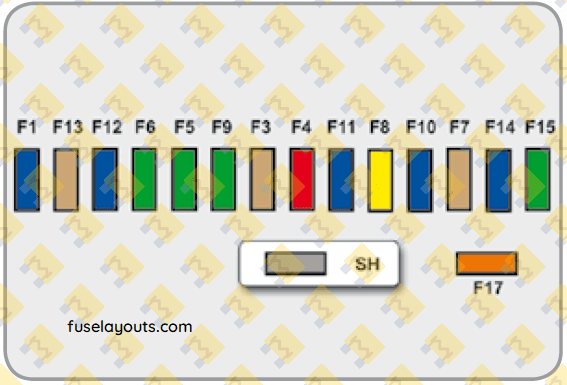

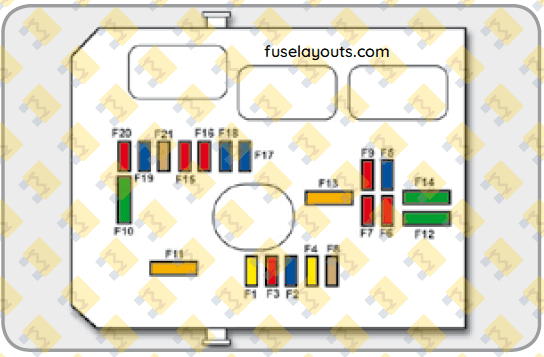

Diagram

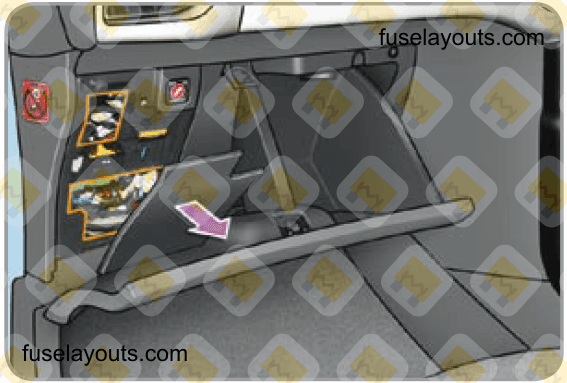

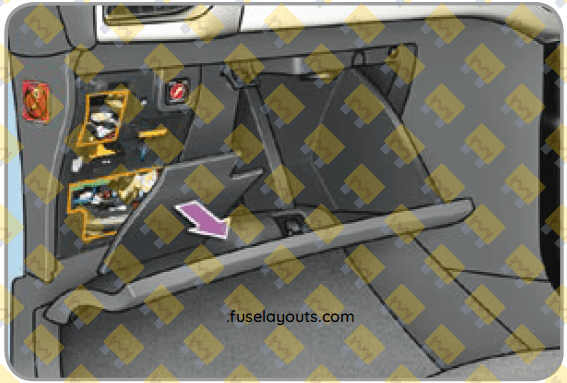

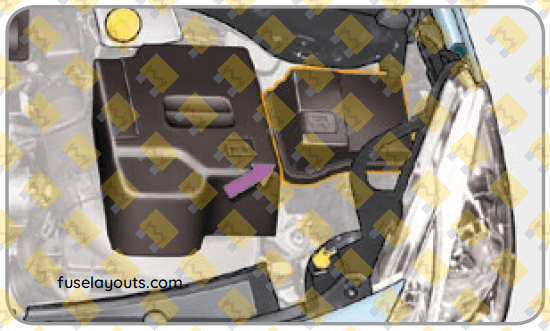

Location

Where to find
- •Open the glove box lid
- •Unclip the fusebox cover by pulling on the side,
- •Remove the cover completely,
- •Remove the pliers.
| No. | Amp | Description |
|---|---|---|
| F1 | 15A | Rear wiper |
| F2 | - | Not used |
| F3 | 5A | Airbags and pretensioners control unit |
| F4 | 10A | Air conditioning, clutch switch, electrochromatic mirror, particle fi lter pump (Diesel), diagnostic socket, airfl ow sensor (Diesel) |
| F5 | 30A | Electric windows panel, passenger's electric window control, front electric window motor |
| F6 | 30A | Rear electric windows motors and driver's electric window motor |
| F7 | 5A | Courtesy lamp, side reading lamps |
| F8 | 20A | Multifunction screen, audio system, navigation radio, instrument panel with clock, alarm control unit, alarm siren |
| F9 | 30A | Audio system (after-market), 12 V socket, portable navigation support supply |
| F10 | 15A | Steering wheel controls |
| F11 | 15A | Ignition, diagnostic socket, automatic gearbox control unit |
| F12 | 15A | Rain/brightness sensor, trailer relay unit, driving school module |
| F13 | 5A | Main stop switch, engine relay unit |
| F14 | 15A | Parking assistance control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifi er. |
| F15 | 30A | Parking assistance control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifi er. |
| F16 | - | Not used |
| F17 | 40A | Rear screen and exterior mirrors demisting/ defrosting |
| FH36 | 5A | Trailer relay unit |
| FH37 | - | Not used |
| FH38 | 20A | HiFi amplifi er |
| FH39 | - | Not used |
| FH40 | 30A | Trailer relay unit |
| SH | - | PARC shunt |
Engine Compartment Fusebox

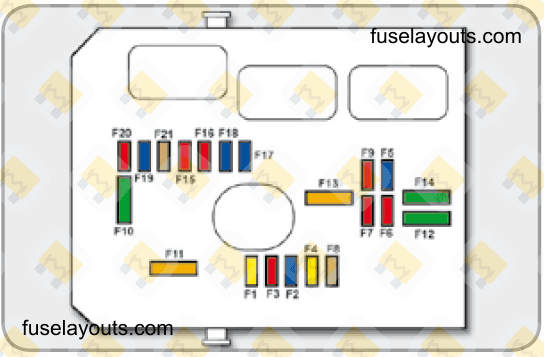

Diagram

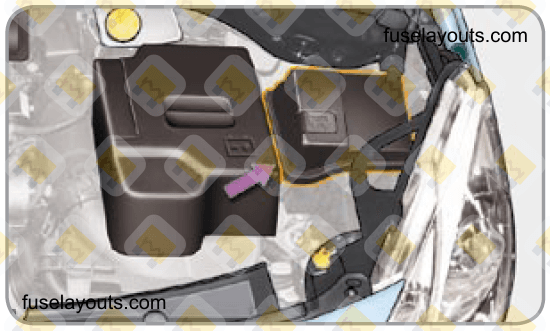

Location

Where to find
- •Unclip the cover
- •Change the fuse (see corresponding paragraph)
- •When you have fi nished, close the cover carefully to ensure the sealing of the fuse box
| No. | Amp | Description |
|---|---|---|
| F1 | 20A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel). |
| F2 | 15A | Horn |
| F3 | 10A | Front/rear wash-wipe |
| F4 | 20A | Daytime running lamps |
| F5 | 15A | Diesel heater (Diesel), particle fi lter additive pump (Diesel), air fl ow sensor (Diesel), EGR electrovalve (Diesel), fuel pump (1.1i and 1.4i), blow-by heater and electrovalves (VTi) |
| F6 | 10A | ABS/ESP control unit, secondary stop switch |
| F7 | 10A | Electric power steering, automatic gearbox |
| F8 | 25A | Starter control |
| F9 | 10A | Switching and protection unit (Diesel) |
| F10 | 30A | Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1i and 1.4i) |
| F11 | 40A | Heater blower |
| F12 | 30A | Windscreen wipers slow/fast speed |
| F13 | 40A | Built-in systems interface supply (ignition positive) |
| F14 | 30A | Valvetronic supply (VTi) |
| F15 | 10A | Right-hand main beam headlamps |
| F16 | 10A | Left-hand main beam headlamps |
| F17 | 15A | Left-hand dipped beam headlamps |
| F18 | 15A | Right-hand dipped beam headlamps |
| F19 | 15A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel) |
| F20 | 10A | Pumps, electronic thermostat (VTi) water in fuel sensor (Diesel) |
| F21 | 5A | Fan assembly control supply, ABS/ESP |
| MF1 | 60A | Fan assembly |
| MF2 | 30A | ABS/ESP pump |
| MF3 | 30A | ABS/ESP electrovalves |
| MF4 | 60A | Built-in Systems Interface (BSI) supply |
| MF5 | 60A | Built-in Systems Interface (BSI) supply |
| MF6 | - | Not used |
| MF7 | - | Passenger compartment fusebox |
| MF8 | - | Not used |
Found an error?
If you noticed an error in the fuse description or diagram, let us know! Help us improve the database.

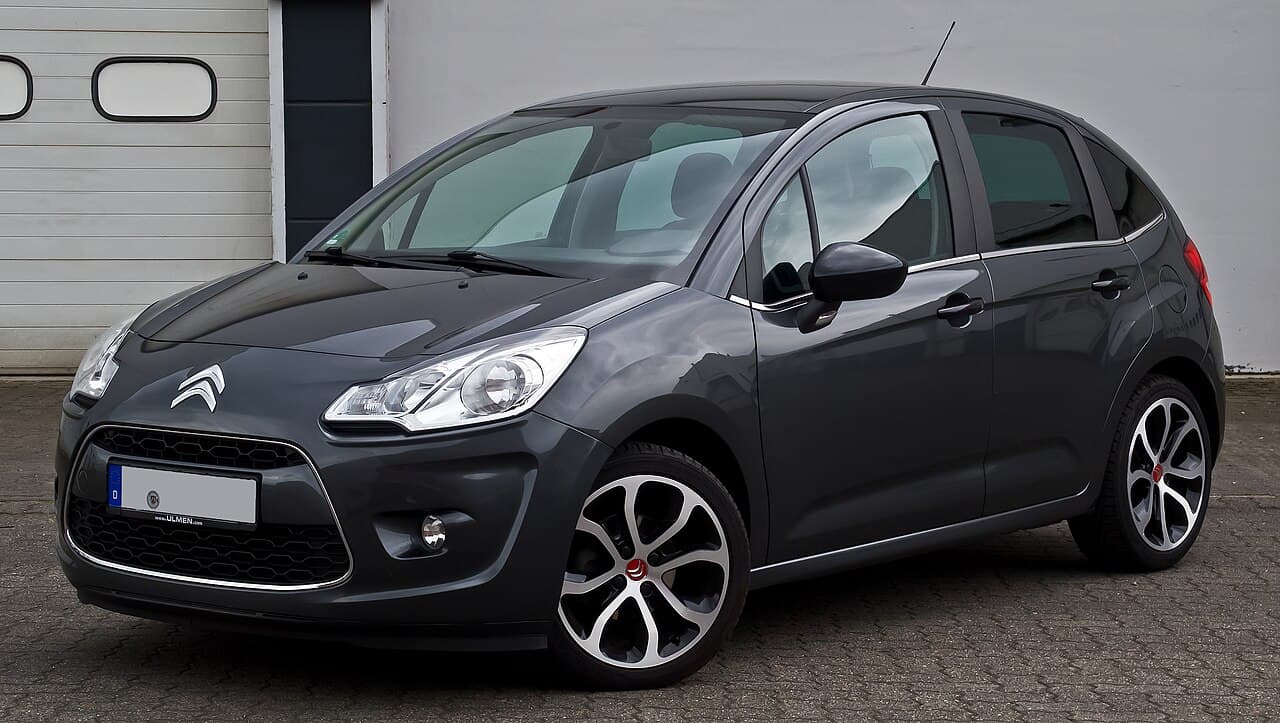

Citroën C3 II (2009-2013)
Exterior Design
Visually, the car adopted a softer and more expressive silhouette, clearly aimed at urban drivers looking for style as well as practicality. The front end stood out with distinctive boomerang-shaped headlights and a grille seamlessly integrated into the bumper, while the rear echoed this theme with inverted, high-mounted taillights designed to better resist minor parking impacts. One of the most striking features was the optional panoramic "Zenith" windscreen, which extended upwards into the roof and dramatically increased the sense of space and visibility for occupants.Interior
Inside, the cabin mirrored the flowing exterior design. The dashboard featured smooth lines and modern finishes, with a choice of black or chrome accents and several upholstery options, including leather. The instrument panel combined traditional analogue dials with a central digital display, while the conventional engine temperature gauge was replaced by a simple color-coded warning light system to indicate cold or overheating conditions.Engines and Drivetrain
Under the bonnet, the second-generation C3 retained familiar powertrains but refined them for improved efficiency and lower emissions. Petrol engines developed in cooperation with BMW, known as the "Prince" family, offered advanced technology such as dual overhead camshafts and intelligent fluid management systems. These were complemented by economical diesel options, all designed to keep CO₂ emissions low without sacrificing everyday performance. Both manual and automatic transmissions were available, catering to a wide range of driving preferences.Launched to the European market in late 2009 as a 2010 model, the new C3 was promoted around the concept of enhanced visibility and driving comfort. Its combination of expressive design, smart interior solutions, and efficient engines made it a strong contender in the small car segment, appealing to drivers who valued individuality as much as practicality.
Warning
Never use a higher amperage fuse!
Tip
Spare fuses are often in the box cover.
