CITROËN C3 II FACELIFT
Below you will find interactive and original diagrams for CITROËN C3 II FACELIFT.
Total Fuses
44
Most Common
15A (9)
Important: Disclaimer
FuseLayouts.com is not responsible for any malfunctions, damages, repair costs, or any other losses resulting from the use of the information and diagrams provided. All repairs and modifications are performed at your own risk. We always recommend consulting with a qualified mechanic for more serious electrical issues.
Before using the diagram, make sure it matches your exact vehicle model and production year. Diagrams may vary depending on equipment version and year.
Select Fuse Box:
Interactive 3D Diagram
Selected Fuse
Select a fuse from the diagram or table
| No. | Amp | Circuit |
|---|---|---|
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | 5A | Airbags and pretensioners control unit |
| F4 | 10A | Air conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel) |
| F5 | 30A | Electric windows panel, passenger's electric window control, front electric window motor |
| F6 | 30A | Rear electric windows motors and driver's electric window motor |
| F7 | 5A | Courtesy lamp, side reading lamps |
| F8 | 20A | Multifunction screen, audio system, navigation radio, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), portable navigation system carrier supply |
| F9 | 30A | Multifunction screen, audio system, navigation audio unit, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation support supply, locking |
| F10 | 15A | Steering mounted controls |
| F11 | 15A | Ignition, diagnostic socket, automatic gearbox control unit |
| F12 | 15A | Rain / sunshine sensor, trailer relay unit, driving school module |
| F13 | 5A | Main stop switch, engine relay unit, electronic gearbox gear lever |
| F14 | 15A | Parking sensors control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifier, reversing camera |
| F15 | 30A | Locking |
| F16 | - | Not used |
| F17 | 40A | Rear screen and door mirrors demisting/defrosting |
| FH36 | 5A | Trailer relay unit |
| FH37 | - | Not used |
| FH38 | 20A | HiFi amplifier |
| FH39 | - | Not used |
| FH40 | 40A | Trailer relay unit |
| SH | - | PARC shunt |
Selected Fuse
Select a fuse from the diagram or table
Original Documentation & Assignments

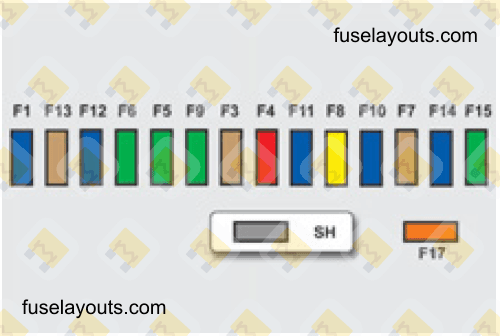

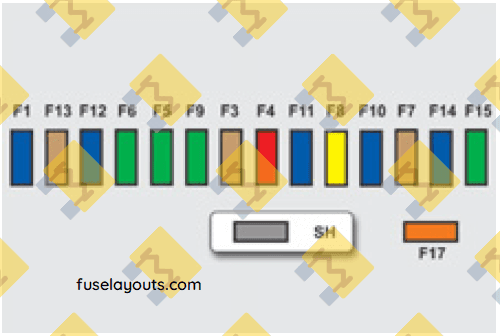

Dashboard Fusebox

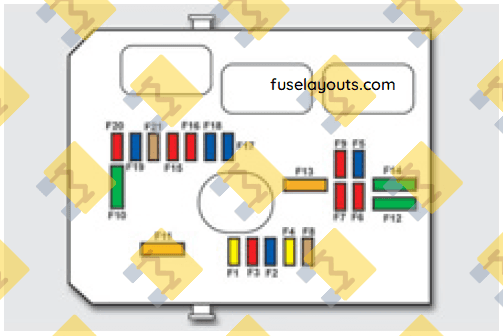

Diagram

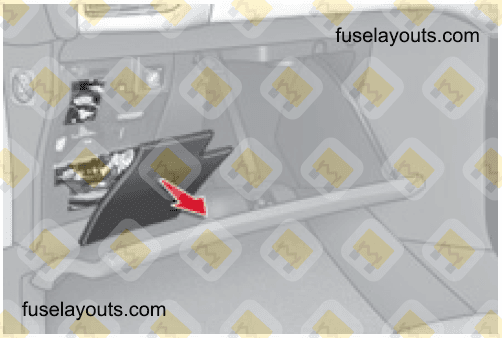

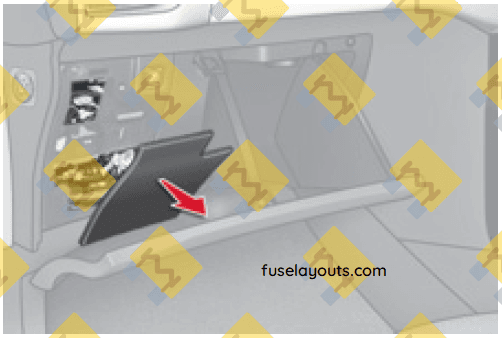

Location

Where to find
- •Open the glove box lid
- •Unclip the fusebox cover by pulling on the side
- •Remove the cover completely
- •remove the tweezer
| No. | Amp | Description |
|---|---|---|
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | 5A | Airbags and pretensioners control unit |
| F4 | 10A | Air conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel) |
| F5 | 30A | Electric windows panel, passenger's electric window control, front electric window motor |
| F6 | 30A | Rear electric windows motors and driver's electric window motor |
| F7 | 5A | Courtesy lamp, side reading lamps |
| F8 | 20A | Multifunction screen, audio system, navigation radio, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), portable navigation system carrier supply |
| F9 | 30A | Multifunction screen, audio system, navigation audio unit, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation support supply, locking |
| F10 | 15A | Steering mounted controls |
| F11 | 15A | Ignition, diagnostic socket, automatic gearbox control unit |
| F12 | 15A | Rain / sunshine sensor, trailer relay unit, driving school module |
| F13 | 5A | Main stop switch, engine relay unit, electronic gearbox gear lever |
| F14 | 15A | Parking sensors control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifier, reversing camera |
| F15 | 30A | Locking |
| F16 | - | Not used |
| F17 | 40A | Rear screen and door mirrors demisting/defrosting |
| FH36 | 5A | Trailer relay unit |
| FH37 | - | Not used |
| FH38 | 20A | HiFi amplifier |
| FH39 | - | Not used |
| FH40 | 40A | Trailer relay unit |
| SH | - | PARC shunt |
Engine Fusebox

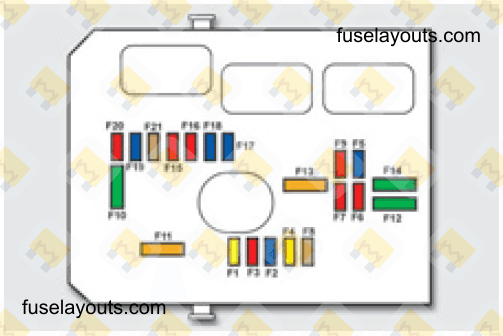

Diagram

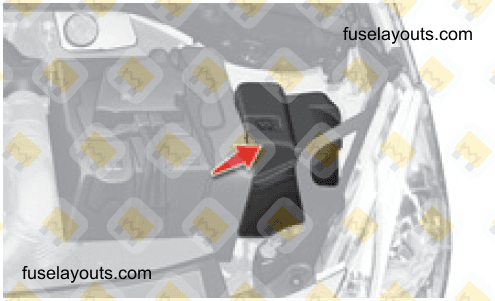

Location

Where to find
- •Unclip the cover
- •Change the fuse
- •When you have finished, close the cover carefully to ensure the sealing of the fuse box
| No. | Amp | Description |
|---|---|---|
| F1 | 20A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel) |
| F2 | 15A | Horn |
| F3 | 10A | Front / rear wash-wipe |
| F4 | 20A | Daytime running lamps, LED daytime running lamps |
| F5 | 15A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater and electrovalves (VTi) |
| F6 | 10A | ABS/ESP control unit, secondary stop switch |
| F7 | 10A | Electric power steering, automatic gearbox |
| F8 | 25A | Starter control |
| F9 | 10A | Switching and protection unit (Diesel) |
| F10 | 30A | Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1i and 1.4i) |
| F11 | 40A | Heater blower |
| F12 | 30A | Windscreen wipers slow / fast speed |
| F13 | 40A | Built-in systems interface supply (ignition positive) |
| F14 | 30A | Valvetronic supply (VTi) |
| F15 | 10A | Right-hand main beam headlamps |
| F16 | 10A | Left-hand main beam headlamps |
| F17 | 15A | Left-hand dipped beam headlamps |
| F18 | 15A | Right-hand dipped beam headlamps |
| F19 | 15A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel) |
| F20 | 10A | Pumps, electronic thermostat (VTi), water in fuel sensor (Diesel) |
| F21 | 5A | Fan assembly control supply, ABS/ESP |
| MF1 | 60A | Fan assembly |
| MF2 | 30A | ABS/ESP pump |
| MF3 | 30A | ABS/ESP electrovalves |
| MF4 | 60A | Built-in Systems Interface (BSI) supply |
| MF5 | 60A | Built-in Systems Interface (BSI) supply |
| MF6 | - | Not used |
| MF7 | 80A | Dashboard fusebox |
| MF8 | - | Not used |
Found an error?
If you noticed an error in the fuse description or diagram, let us know! Help us improve the database.

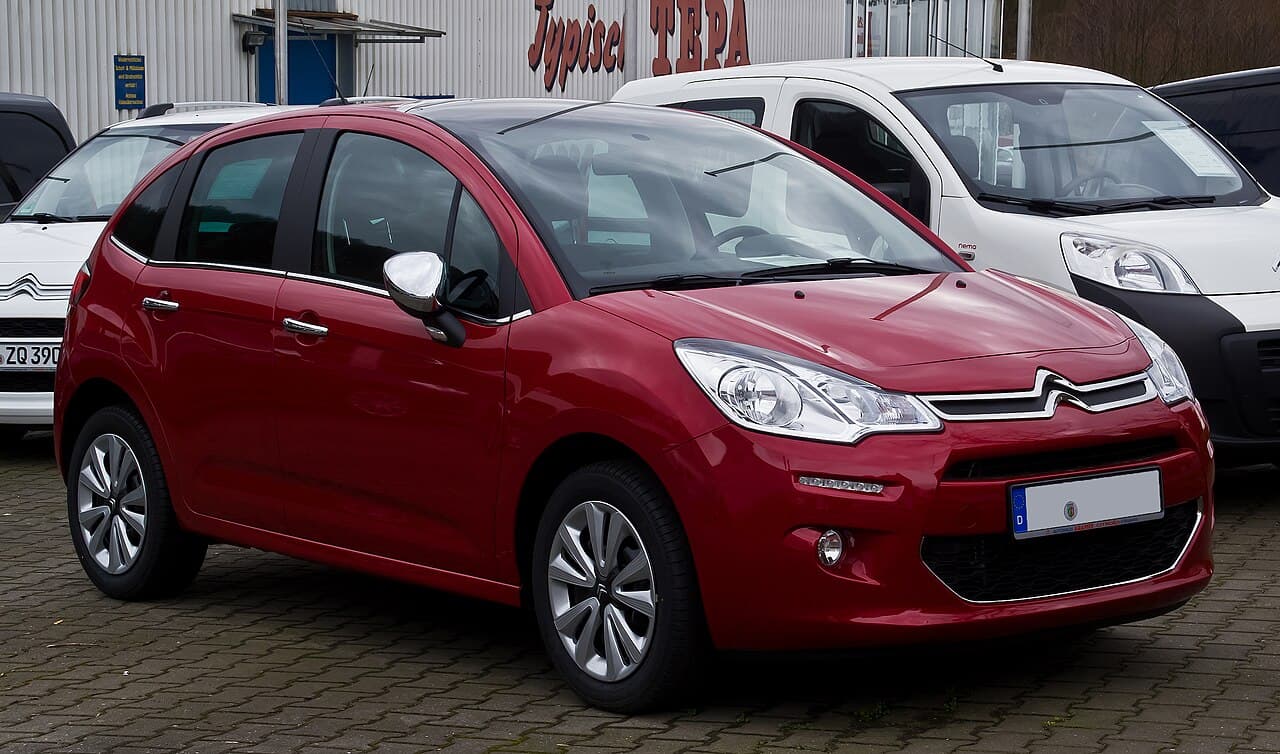

Citroën C3 II Facelift (2013-2016)
2013 Update
By 2013, economic conditions had stabilized and new environmental regulations were approaching, making an update not only desirable but necessary. The refreshed C3 was therefore developed with stricter emissions requirements in mind, while also aiming to enhance its visual appeal and everyday usability.Visual Changes
The most noticeable changes appeared at the front of the car. Redesigned bumpers incorporated LED daytime running lights positioned lower in the fascia, giving the vehicle a more modern and recognizable light signature. The grille layout was revised to improve airflow, combining a slimmer upper section with a wider lower intake that added character to the front end. At the rear, the taillights were redesigned and visually sharpened with chrome detailing, while new reflectors integrated into the bumper improved both style and visibility.Interior and Technology
Inside the cabin, the overall layout remained familiar, but selected materials were upgraded to improve perceived quality. Although the interior architecture was largely unchanged, new technology options were introduced. Buyers could now choose an updated infotainment system offering broader connectivity, including USB, Bluetooth, and auxiliary input support, bringing the C3 closer to contemporary expectations.Mechanical Updates
Mechanical updates were equally important. Petrol engines were revised to deliver improved output and efficiency, even in entry-level versions. Diesel variants received further technical modifications to meet upcoming Euro 6 emissions standards, ensuring lower environmental impact without sacrificing drivability.Presented to the public in early 2013, the facelifted C3 represented a thoughtful evolution rather than a radical redesign. With its refreshed styling, cleaner engines, and improved equipment, it strengthened its position in the small-car segment and extended the model's relevance in an increasingly competitive market.
Warning
Never use a higher amperage fuse!
Tip
Spare fuses are often in the box cover.
